Birds Camera

Birds camera - Robycam 3D System

Birds camera - Robycam 3D System

Normaler Preis $251,122.00 USD
Normaler Preis Verkaufspreis $251,122.00 USD
Sale Ausverkauft

1x Robycam RC3D compact mobile system

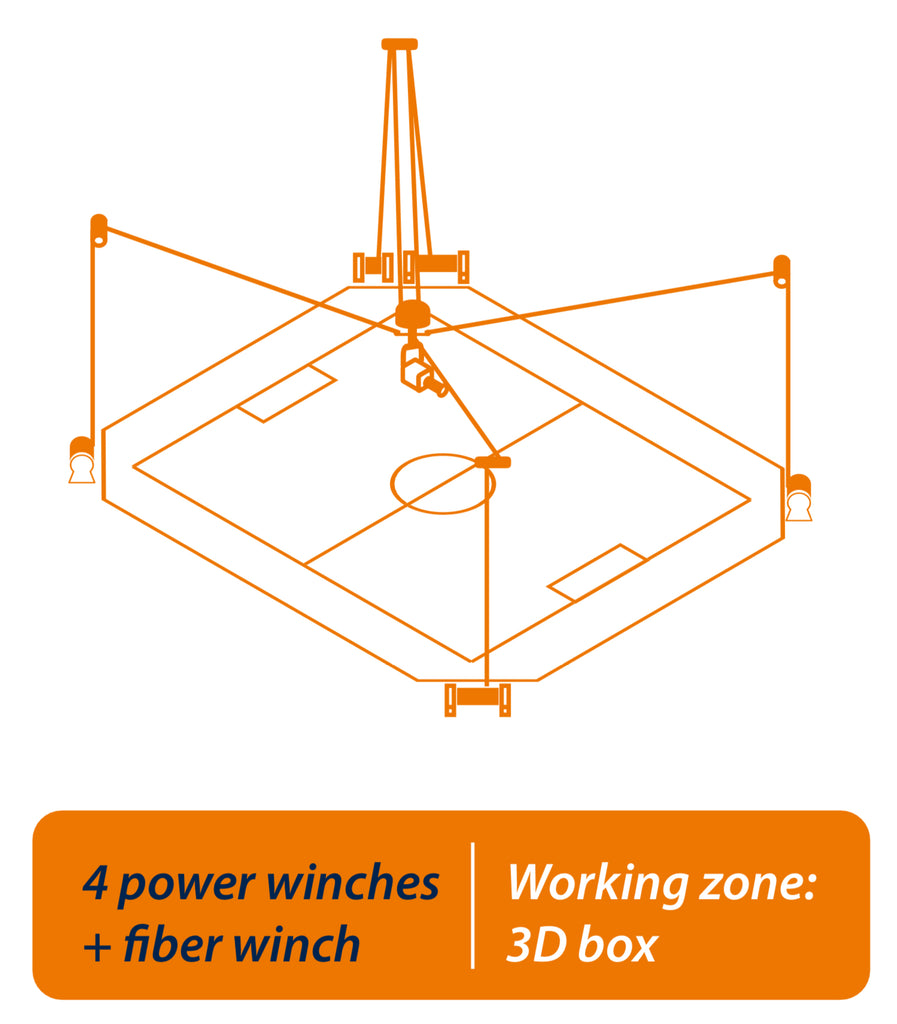

Robycam systems utilise innovative rigging and cabling solutions that allow them to be deployed in full 3D or 2D mode. Thanks to unique wiring modes, the winches can apply more force on the ropes for increased working height and speed.



Contact us for the price



Following is included into this system:

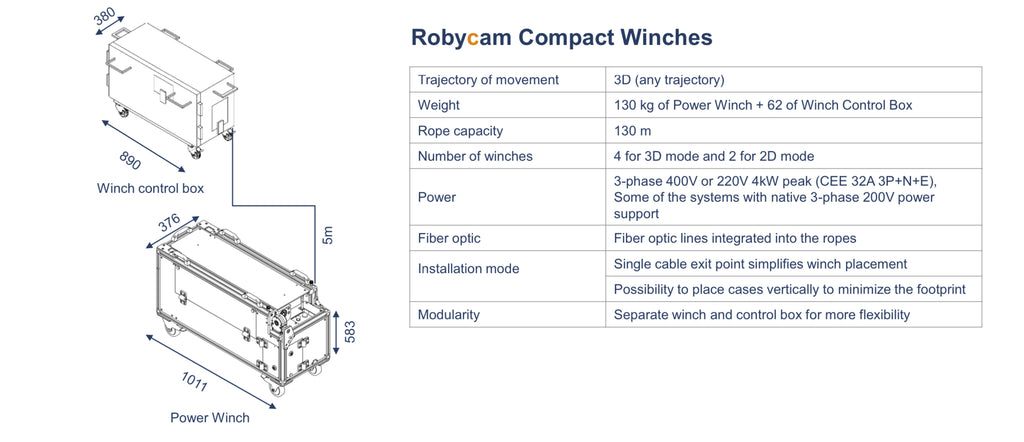

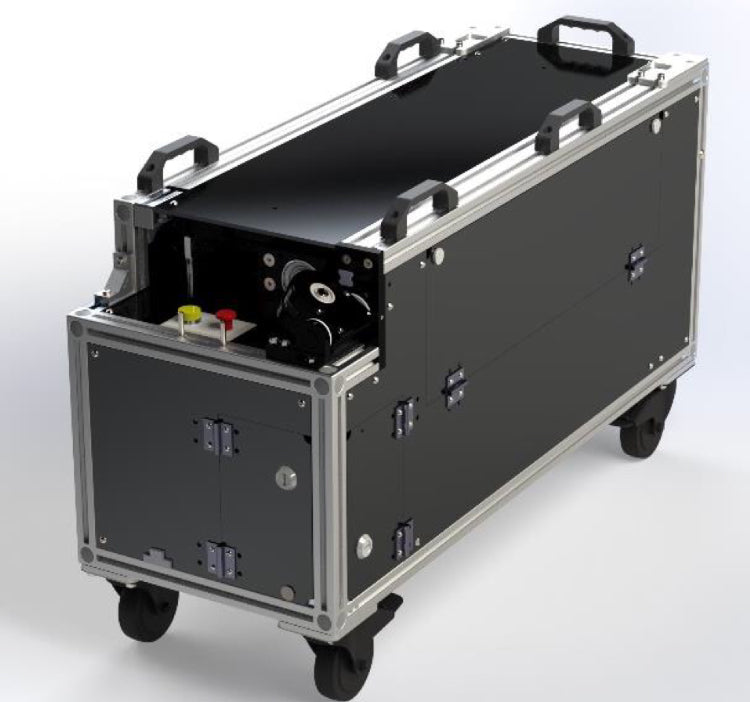

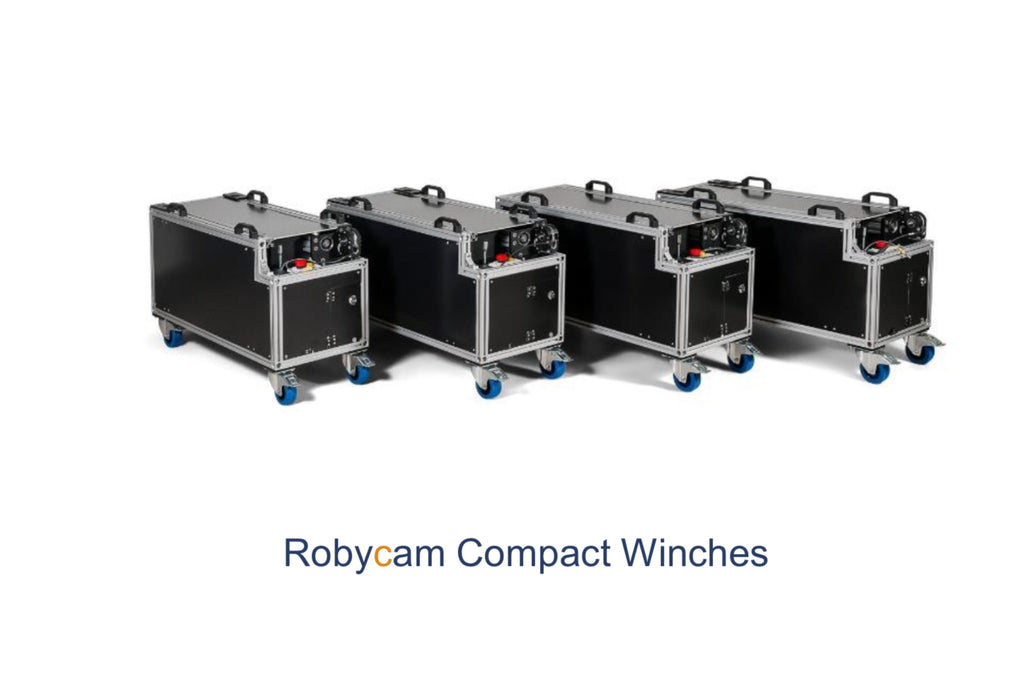

4x Robotic winches 3D + separate power box
• Maximum speed: 4,5 m/s
• Separate winch control unit
• Synthetic cables, 2x fiber-optic cable incl.
• Fiber data connection to control station
• Safety factor: not less than 12x
• Long-life brushless servomotors
• 400VAC power supply
• Ruggedized construction protected against bad weather conditions

• Safety according to DGUV 17/18 (former BGV-C1)
• Separate control system
• 100m x 100m action area
• Long-life brushless servomotors

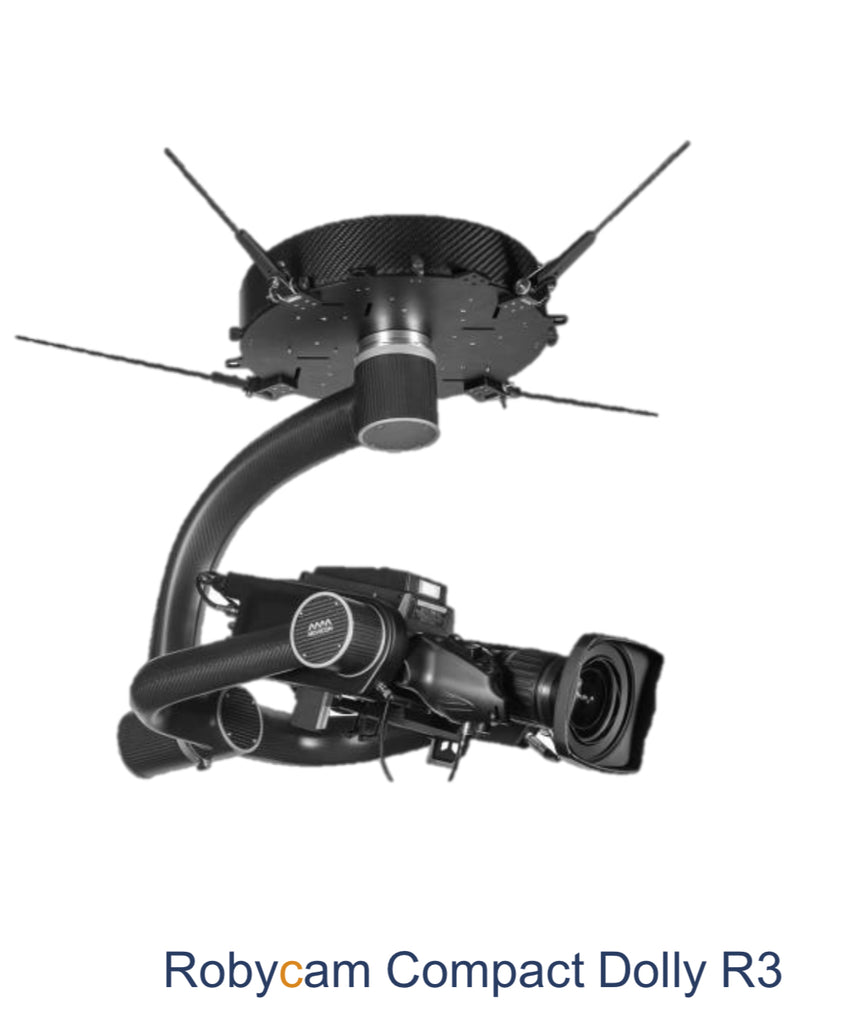

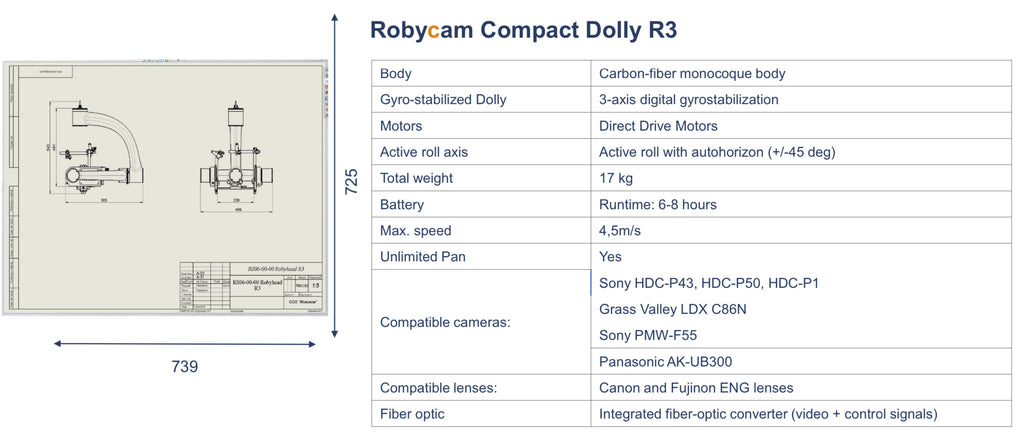

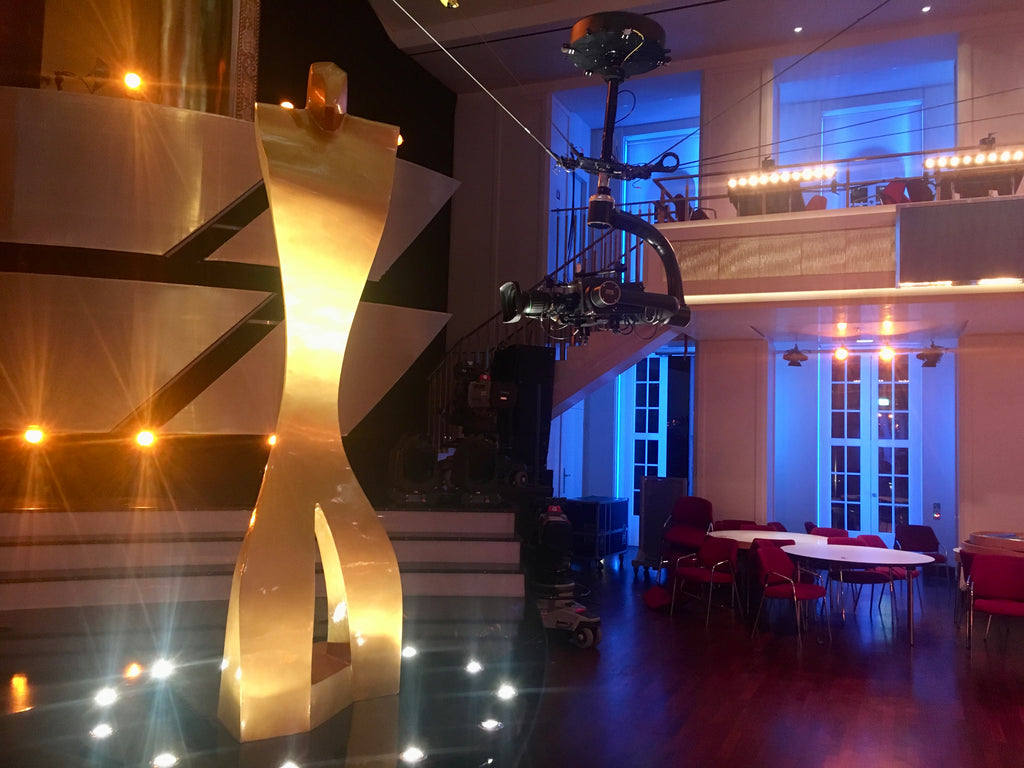

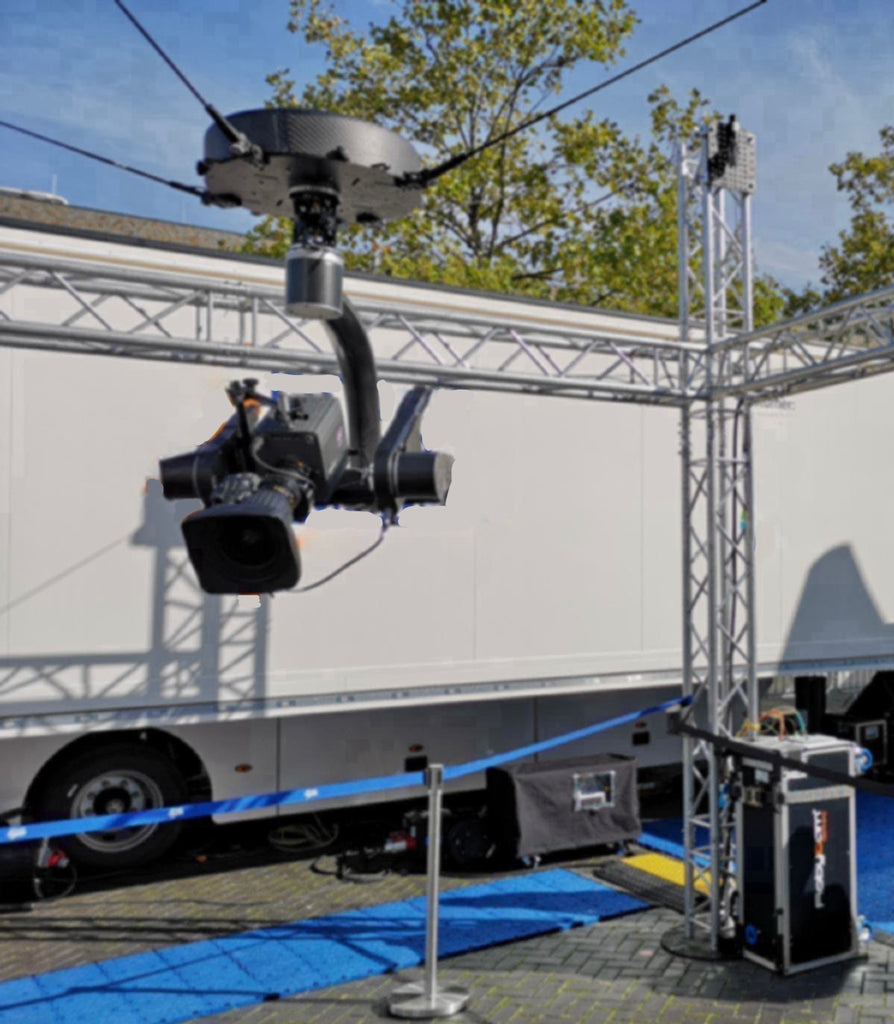

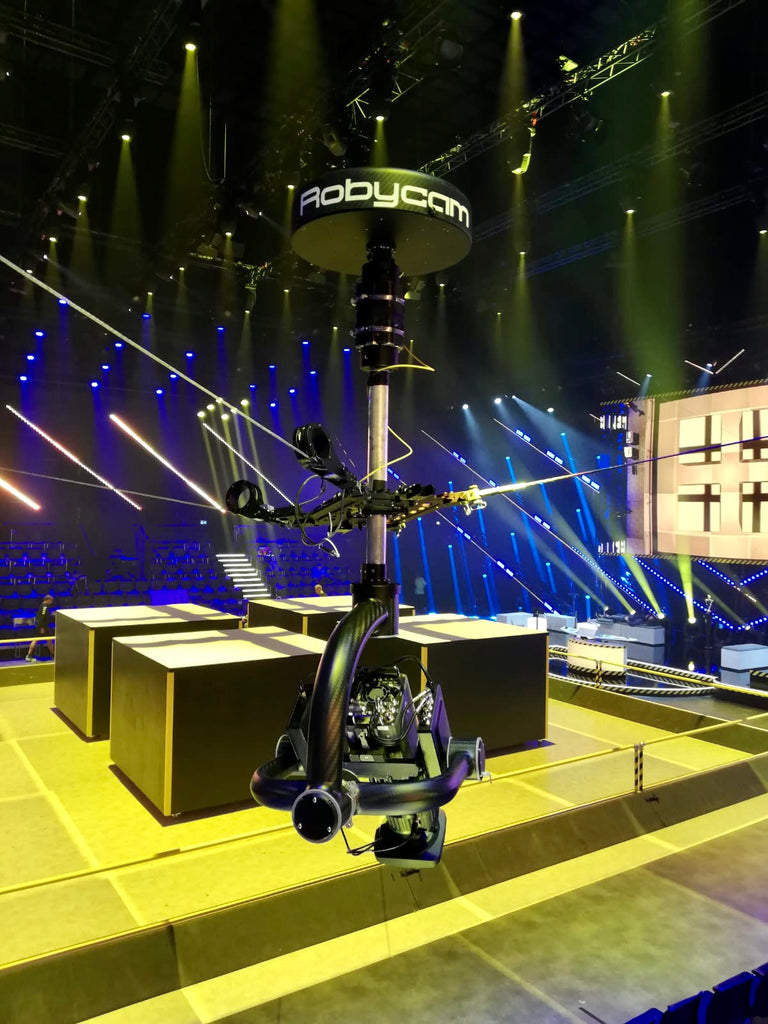

1x RobyHead with dolly R3
• 3-axis gyro-stabilized head
• Data transmission for camera control
• Lightweight and highly durable carbon-fiber construction
• True quad-core digital DSP technology
• Endless pan
• Active Dutch Roll
• Digital Canon and Fujinon lenses supported (cables included) • Battery supply from V-mount battery
• Robycam compass AR tracking module



1x Control station
• Windows 7 Embedded operating system
• Display, keyboard, mouse
• Full features software pack (safety zones, trajectory programming)
• Ready for AR integration
• Standard 19-inch rack case with protection from shock and vibration • UPS buffered operator console inside
• RCCP Robycam 3D movement control panel (X/Y/Z)



4x Swivel pulley
• Designed for Robycam 3D system
• Vertical swivel axis
• Including Pulley mounting plate (Weight 2,2 kg)

• Weight 1,6 kg



Basic power- and fiber-cable are included





This kind of system is very rarely for sale. It is a special offer that we can quote at the moment.

Please ask for more informations.



Please note that the camera and lens is not included into this offer. We are happy to quote this items separately.
