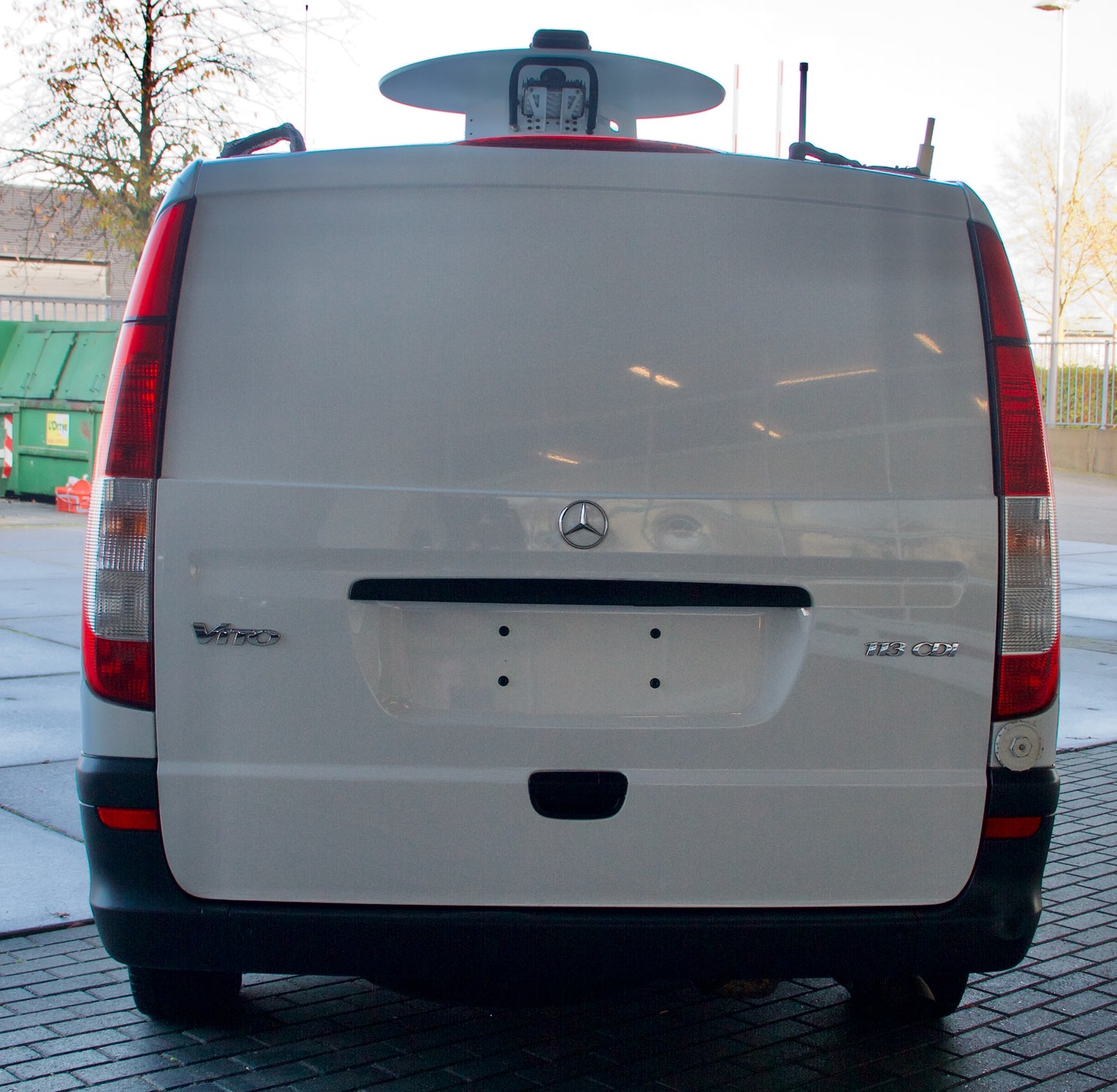

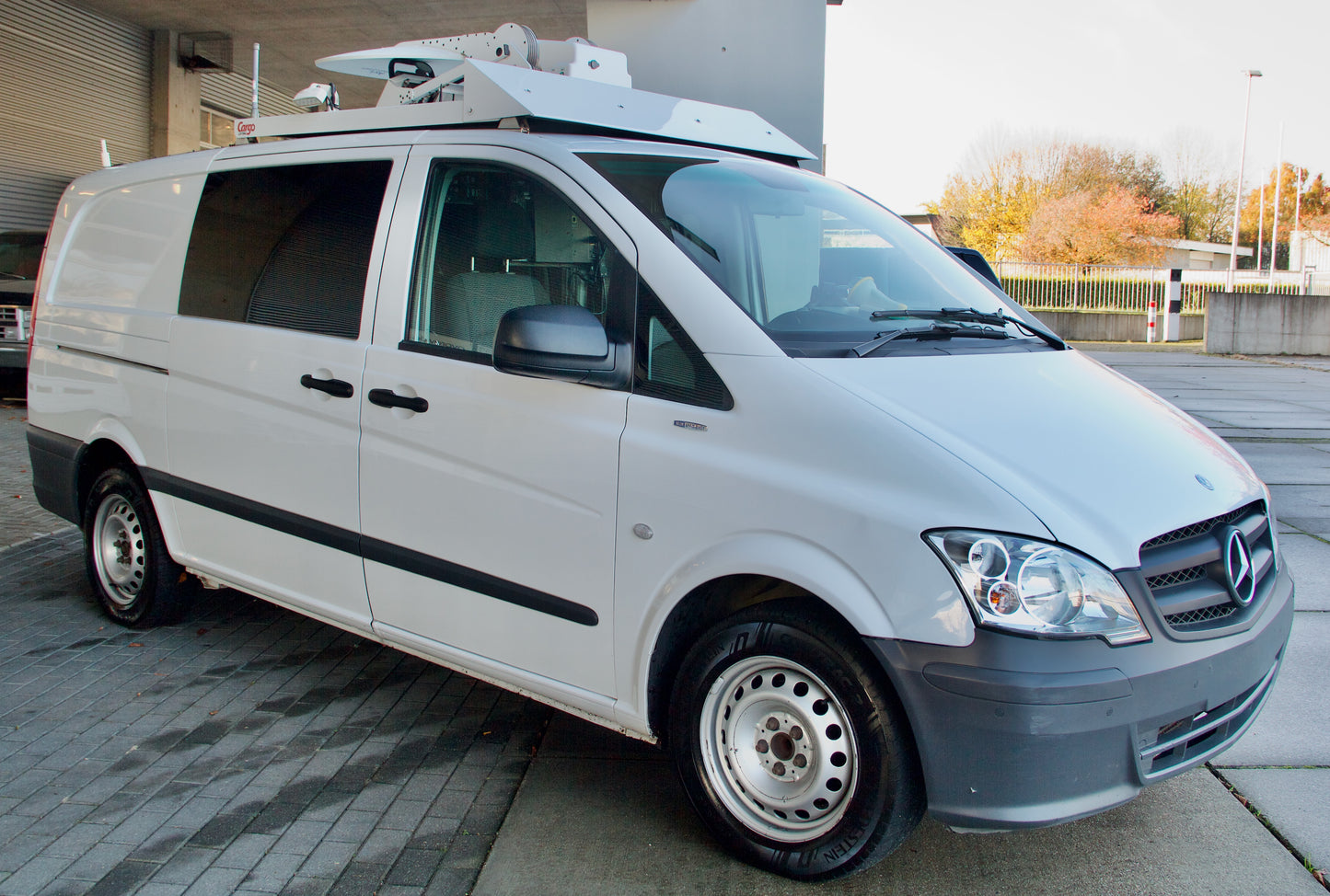

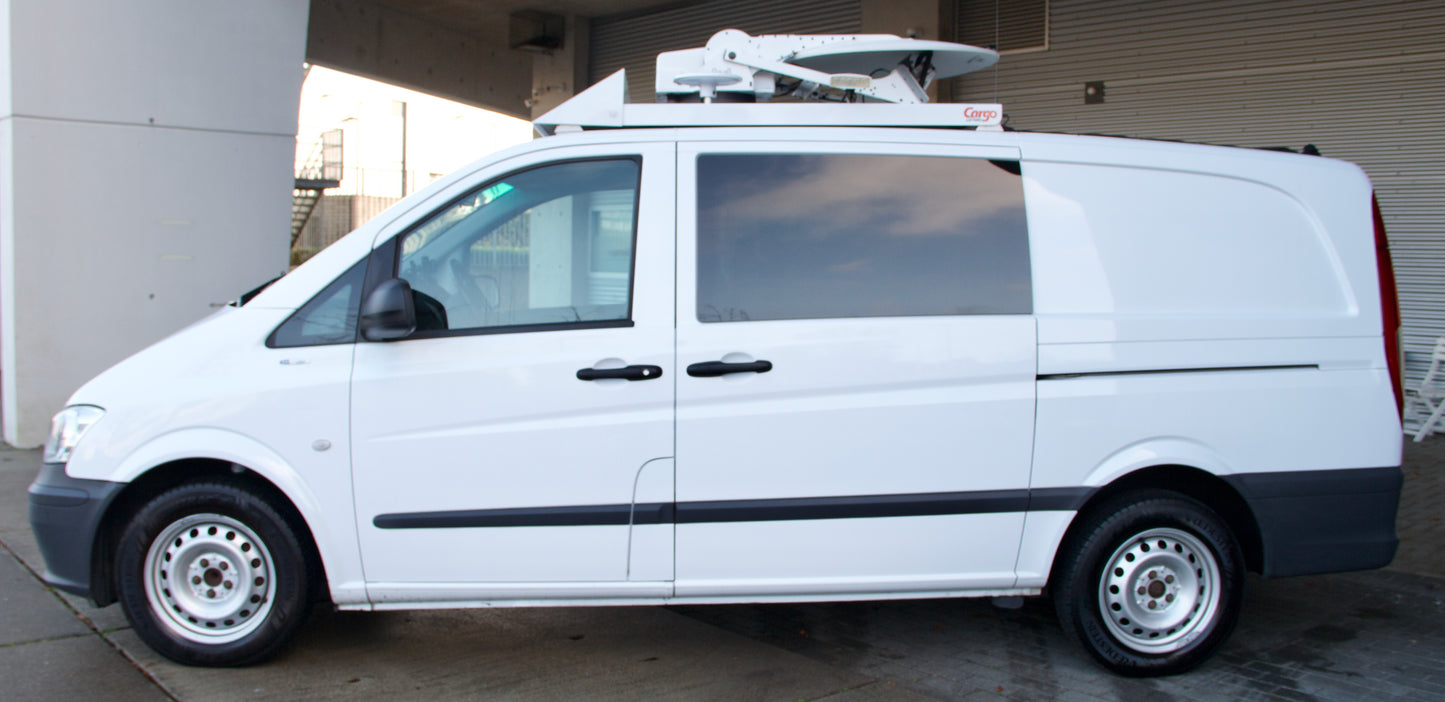

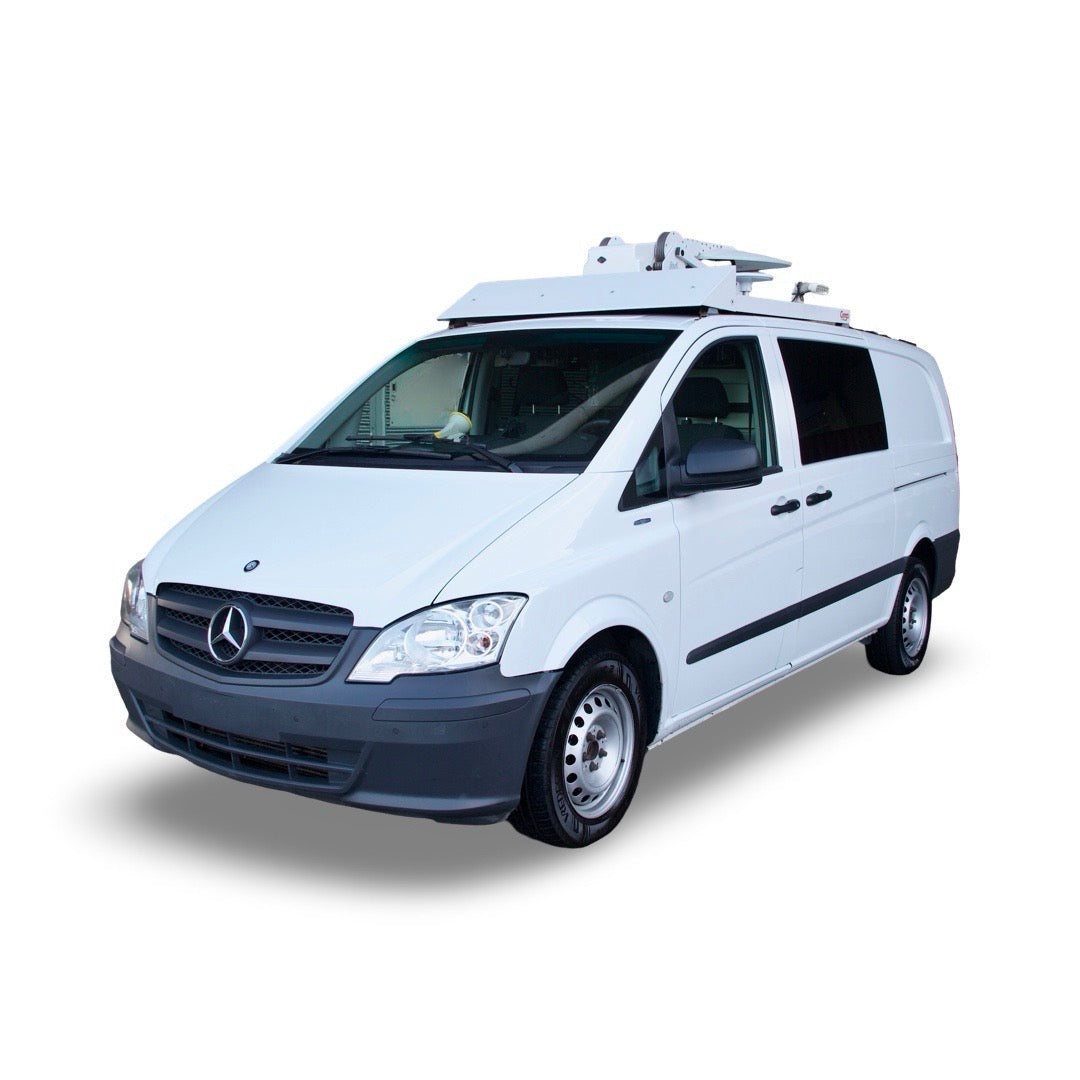

DSNG Mercedes Benz Vito 113CDI

DSNG Mercedes Benz Vito 113CDI

from 2014/15 with Broadband Satellite System

The DSNG Mercedes Benz Vito’s 113CDI of the year 2014/15 are still in
full working order at the moment, are still in very good condition and
also maintained. Below is also the Equipment list.

Available end of August this year

These DSNG vehicles have the functionality to produce 5-channel video and
audio on location and then via a Broadband Satellite Ku System, broadcasting
or uploading the content for newsgathering and live events.
Externally, the previous broadcaster there also had an AVIWEST’s HEVC
mobile transmitter system in these vehicles, the software for this is there in
the DSNG system.

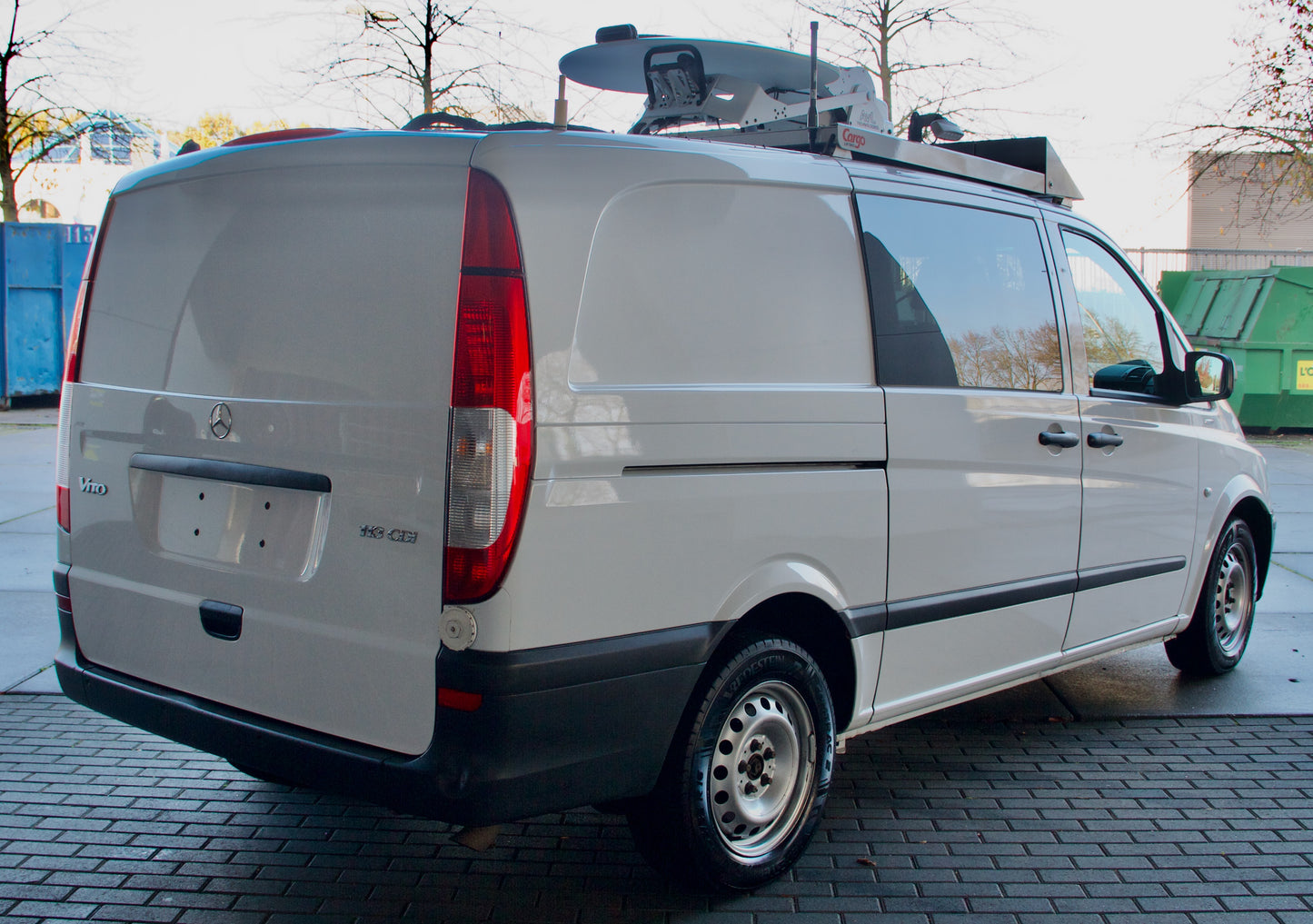

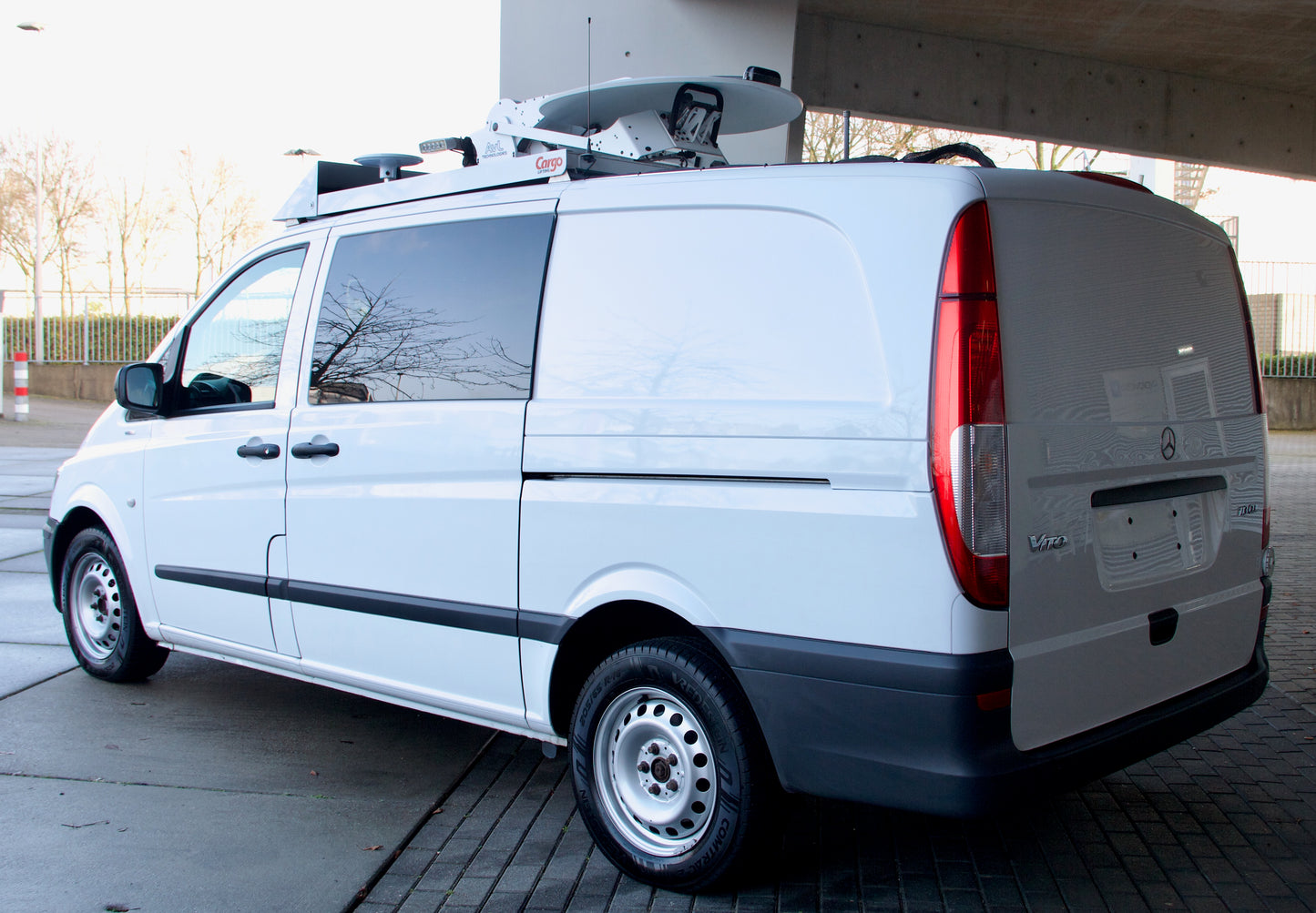

– AVL TOOWAY KA 85CM HF Motorized antenna AVL

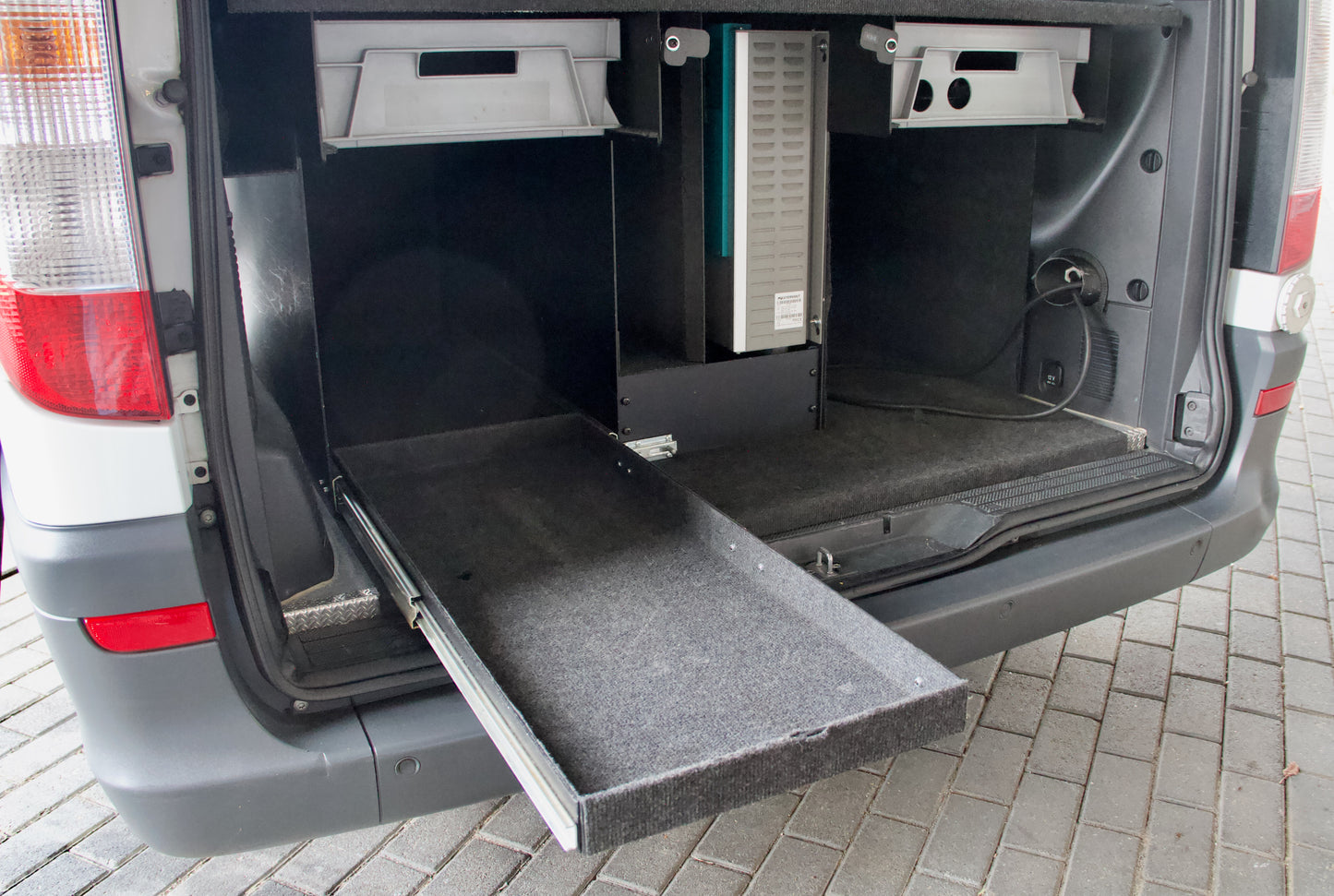

– Cargo Lifting professional roof construction
– 5 inputs HD video and audio.
– ViaSat SurfBeam 2 Pro, SurfBeam 2 High-Performance, High-Capacity Broadband Satellite System

About the SurfBeam® 2 satellite networking system:
The SurfBeam® 2 satellite networking system enables
fast and cost-effective satellite broadband services. The system is designed to simultaneously deliver a wide
range of residential, enterprise, and mobile broadband services. By exploiting the full potential of Ka-band
high-capacity satellites, the SurfBeam 2 system can deliver more than ten times the speed and capacity of
current systems at a much lower cost per subscriber.

Features and Benefits SurfBeam® 2
– Next-generation broadband-over-satellite system for high capacity satellites
– Highly scalable, modular architecture
– Optimized for bent-pipe Ka-band spot beams with frequency reuse
– Highly efficient forward-link modulation and coding
– Adaptive Coding and Modulation
– Highly efficient return-link modulation, coding, and MAC protocols
– Return channel modem burst rates of up to 10 Msps (up to 20 Msps with premium user terminals)
– High density hub equipment—up to 1 GHz4 of bandwidth in only 13 rack units
– Embedded acceleration
– Easy to use network management system
– Easy integration with your business systems
– Multiple remote terminals for residential, enterprise, portable, and mobile user applications

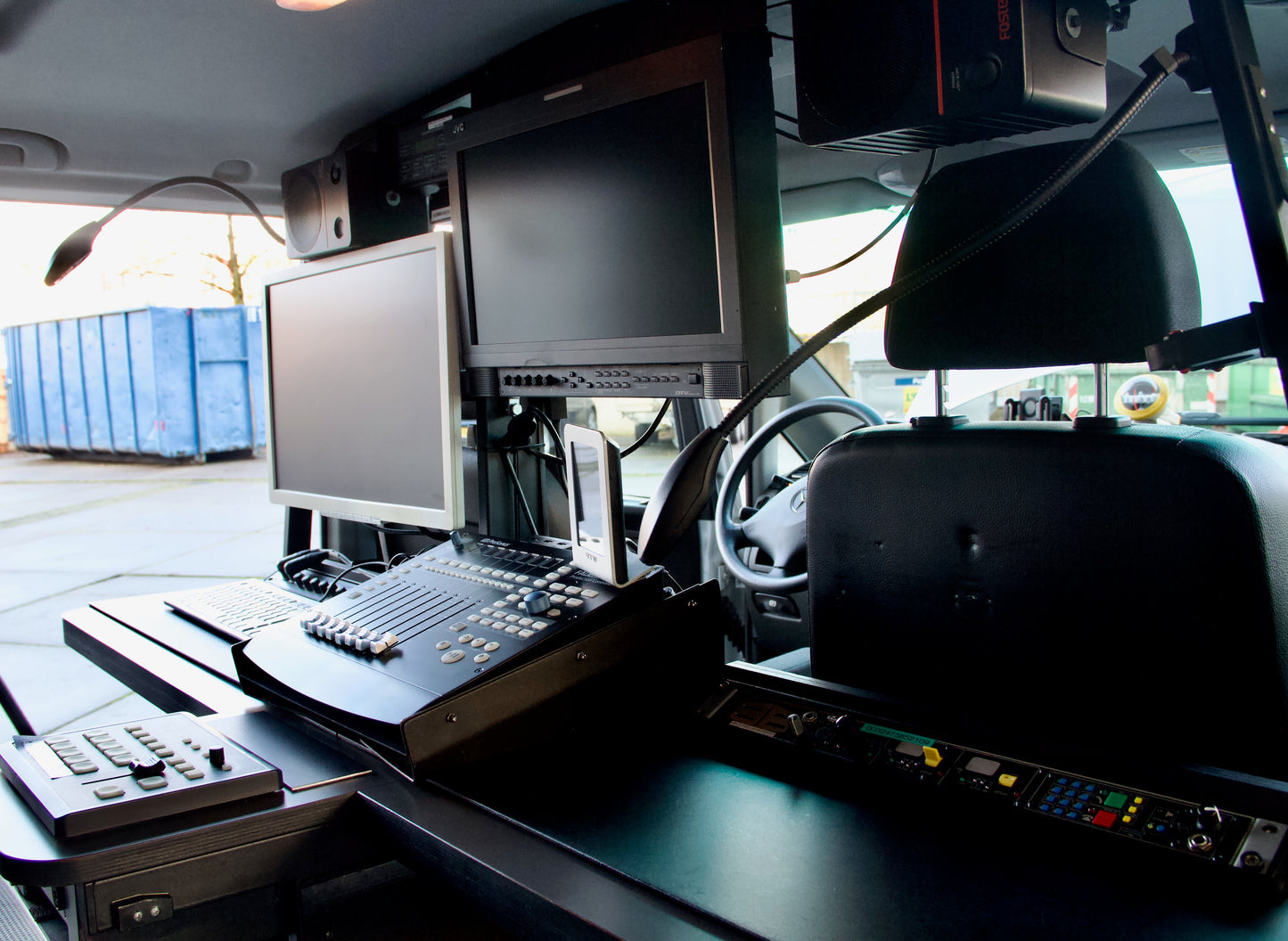

Equipment list provisional for 99%) at the moment:
– 1x MASTERVOLT Power supplies UPS, INVERTER 12V 2000VA 100A
– 1x Power supplies, UPS, Matterport MICC load monitor, model: MICC.
– 1x Audio Amplifier and Pre-Amplifier Distributor amplifier 1x microphone, 2x line, model 106
– 1x AVL TOOWAY KA 85CM HF antenna AVL MOTORISED ANTENNA
– 1x AVL 701-320-311, Antenna Controller
– 1x SURFBEAM 2 PRO HF Transmitters Receivers ViaSat Modem
– 1x ANT 117-KNL HF antenna DVB-T ANTENNA KONIG GAIN 20DB INT EXT
– 1x DVB-T INSERT10 HF antenna DVB-T ANTENNA SUPPLY KONIG
– 1x RT2103N-XXX HF TRIA 2.5W VIASAT antenna FOR SATELLITE ANTENNA

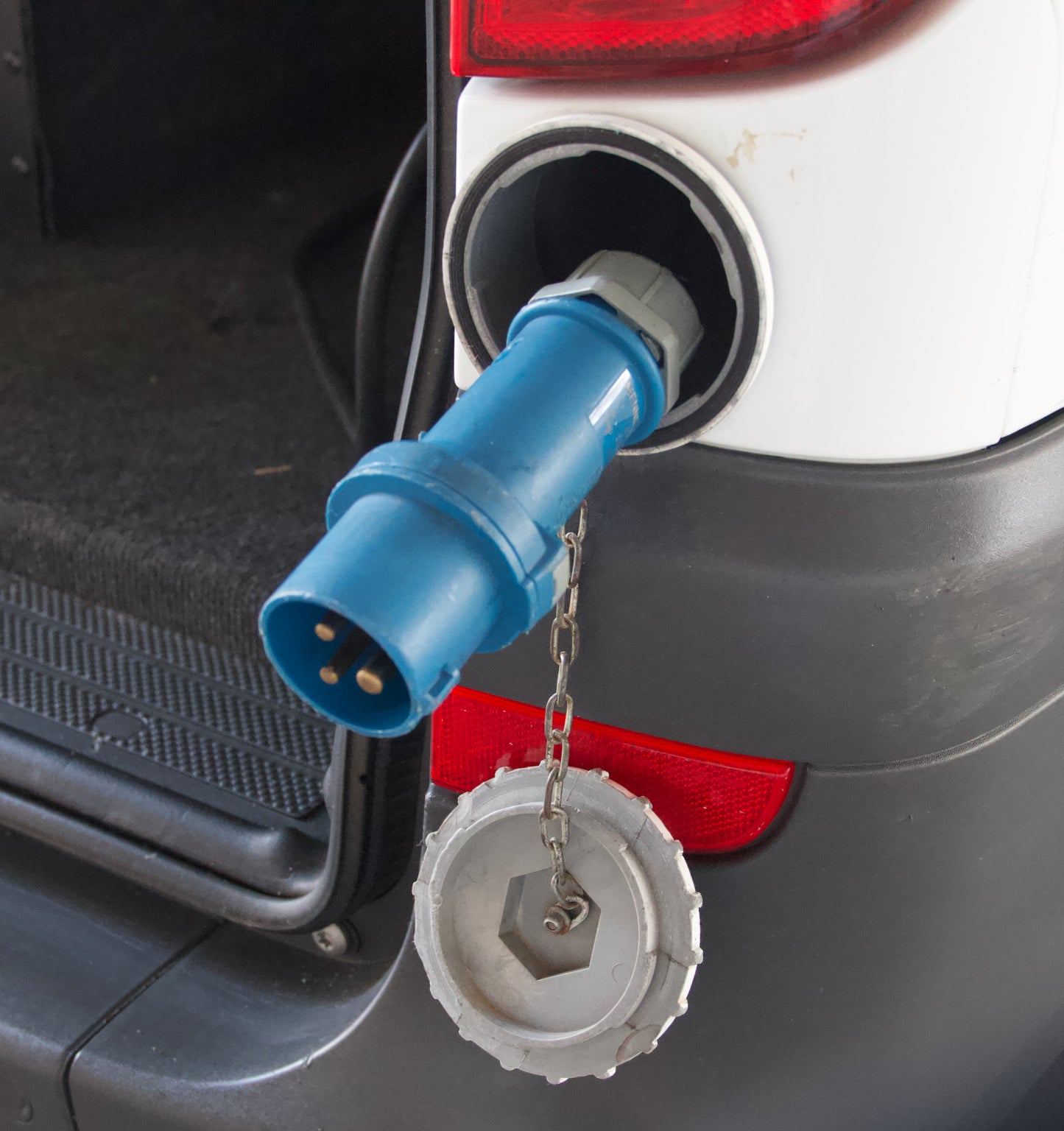

– 2x ADAPT SCHUKO M>CEE-16/3 F Cable and Electrical Conversion
– 2x HD25 / HD25-II Headsets and Earphones SENNHEISER HD 25
– 1x GARMIN DRIVE 60 GPS Charger

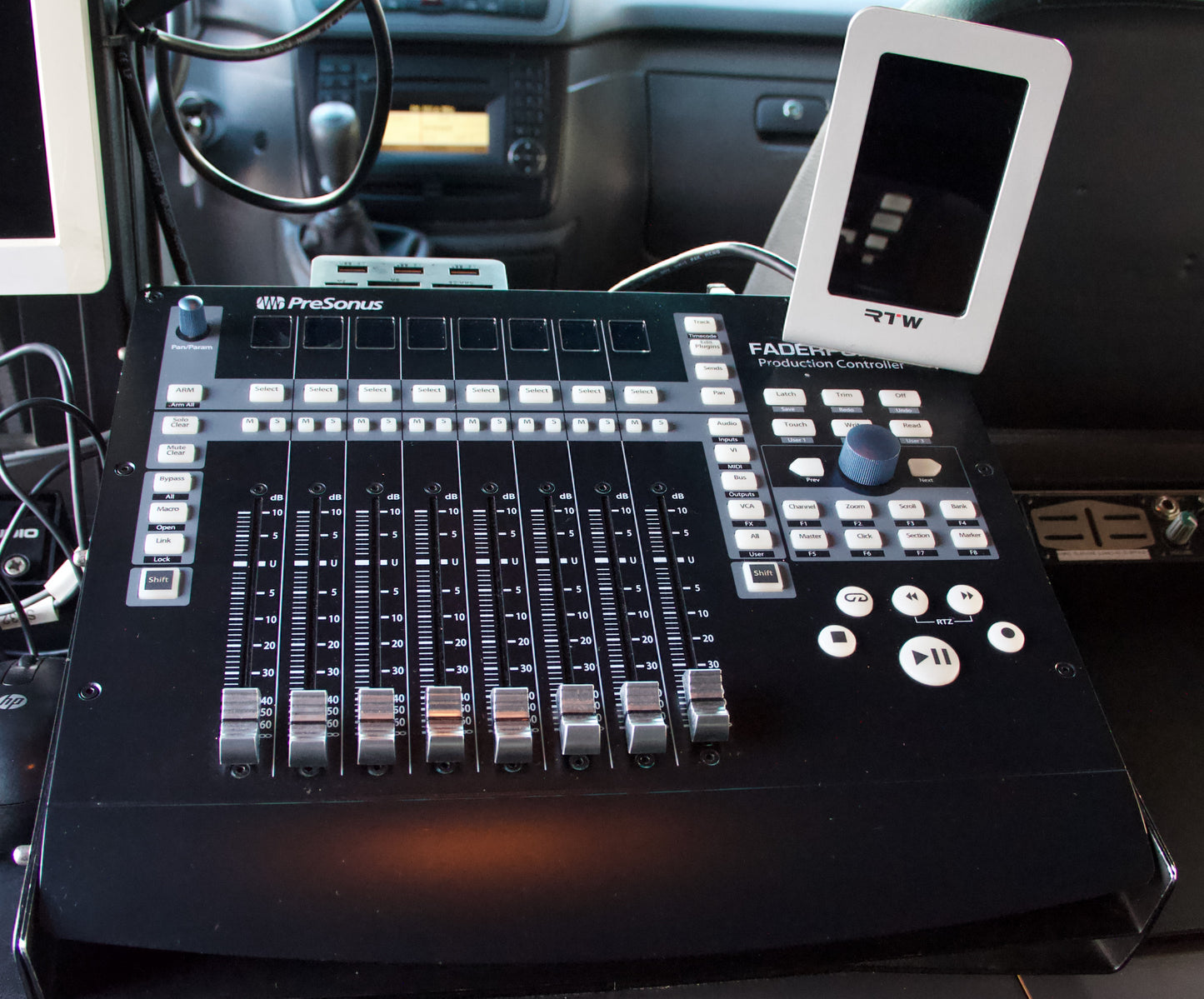

– 1x Presonus FaderPort 8, FaderPort 8 Console and Audio Mixing USB 8ch
– 1x Power supply for Presonus FaderPort 8
– 1x AJA 3G-AMA Video Converters Embedder/Desembedder 4ch 3G-AMA
– 1x BLACKMAGIC Mini Converter HDMI to SDI Video Converters HDMI, 2x SDI

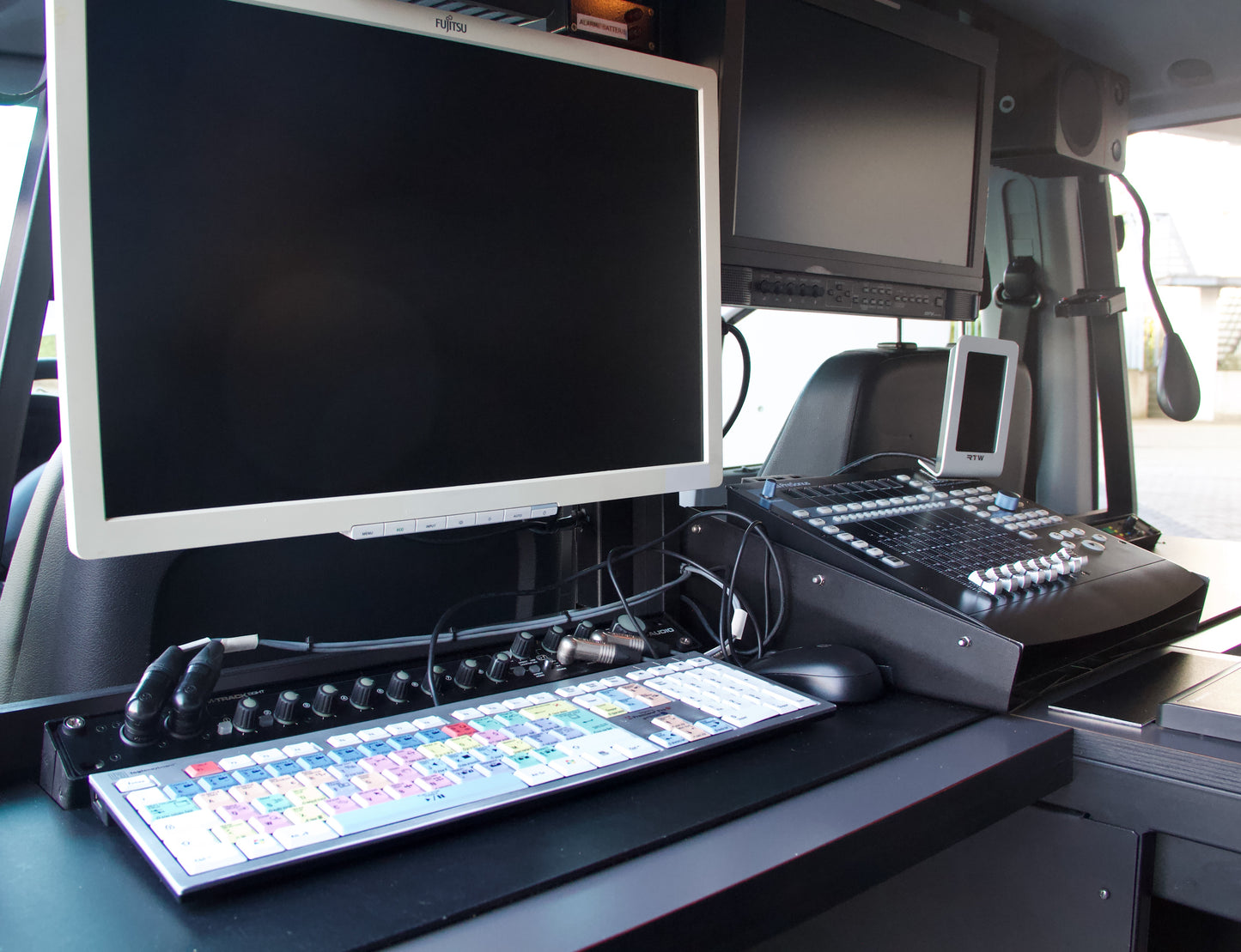

– 1x FUJITSU, B22W-6, PC Displays 22″” 16/10″ LED SCREEN
– 1x JVC DT-V17G1, video monitor
– 2x FOSTEX, EB-6301 / 9610, SPEAKER STAND FOSTEX 6301
– 1x HARRIS, 6800+RESC, Glue +RESC RESOURCE MODULE, CARD
– 2x HARRIS, DA-H6802+D, Glue DISTRIB. SD/HD
– 1x HARRIS, DEC 6800+D, Glue, PAL TO 4:2:2 DEC CARD”
– 1x HARRIS, FR6822+QXFE, Glue, RACK 19″ LEITCH FR6822 + QXFE + AC
– 1x HARRIS, MSA6800+A4C2D, Glue, CARD
– 1x HARRIS, VAM 6800+A4D, Glue, CARD
– 2x HARRIS, VCA 6800+D, Glue, CARD
– 1x LEITCH, HFS6801+D, Glue
– 1x FOCUSRITE Scarlett3 18i20, Audio interfaces (GPI) 3rd generation
– 1x AJA, ALIM, CONVERTER POWER SUPPLY
– 1x COLEMAN, MACH III, AIR CONDITIONER
– 1x CATUELEC, DT 200, EARTH MEASUREMENT CATU CATOHM DT 200/07-95
– 1x WOHLER, AMP1A-2S, 2 stereo inputs
– 1x AUDIX, OM6, Micro- DI Box-isolators
– 1x PANASONIC AW-HS50E VIDEO MIXER
– 1x KRAMER, Power supply for Kramer Tools
– 1x M-AUDIO, Alim. M-Track Eight, N/A Power supply for M-Track Eight
– 1x MUSA 24 HD VIDEO PATCH + STUDY, COORD 8
– 1x MOBILE MODEM/ROUTER 3G/4G/WIFI
– 1x TP-LINK, Archer MR600, Switch 4G+ LTE Router – D-Link Dual Band WiFi
– 1x TP-LINK, TPE-1020WS, Switch ETHERNET 16 PORTS GIGABIT
– 1x RTW TM3, Audio metering

! NOTE !
The DSNG vehicles we sell are without network and computer equipment,
these need to be removed according to the rules of the previous owner.
But this need not be a problem because we know which network equipment
has been in it. So, a new network can easily be built, the advantage being
that the end user can configure the new network to his own needs. (Cost approximately € 1.750.00)
For the computers, the same applies as for the network, new computer and reconfiguring. (Cost about € 750.00)
What is also an advantage with these DSNG vehicles, included are the technical data of these DSNG vehicles,
electrical diagram, Frequency diagram and maintenance of these Mercedes Benz Vito 113CDI, year 2014/15 vehicles.
