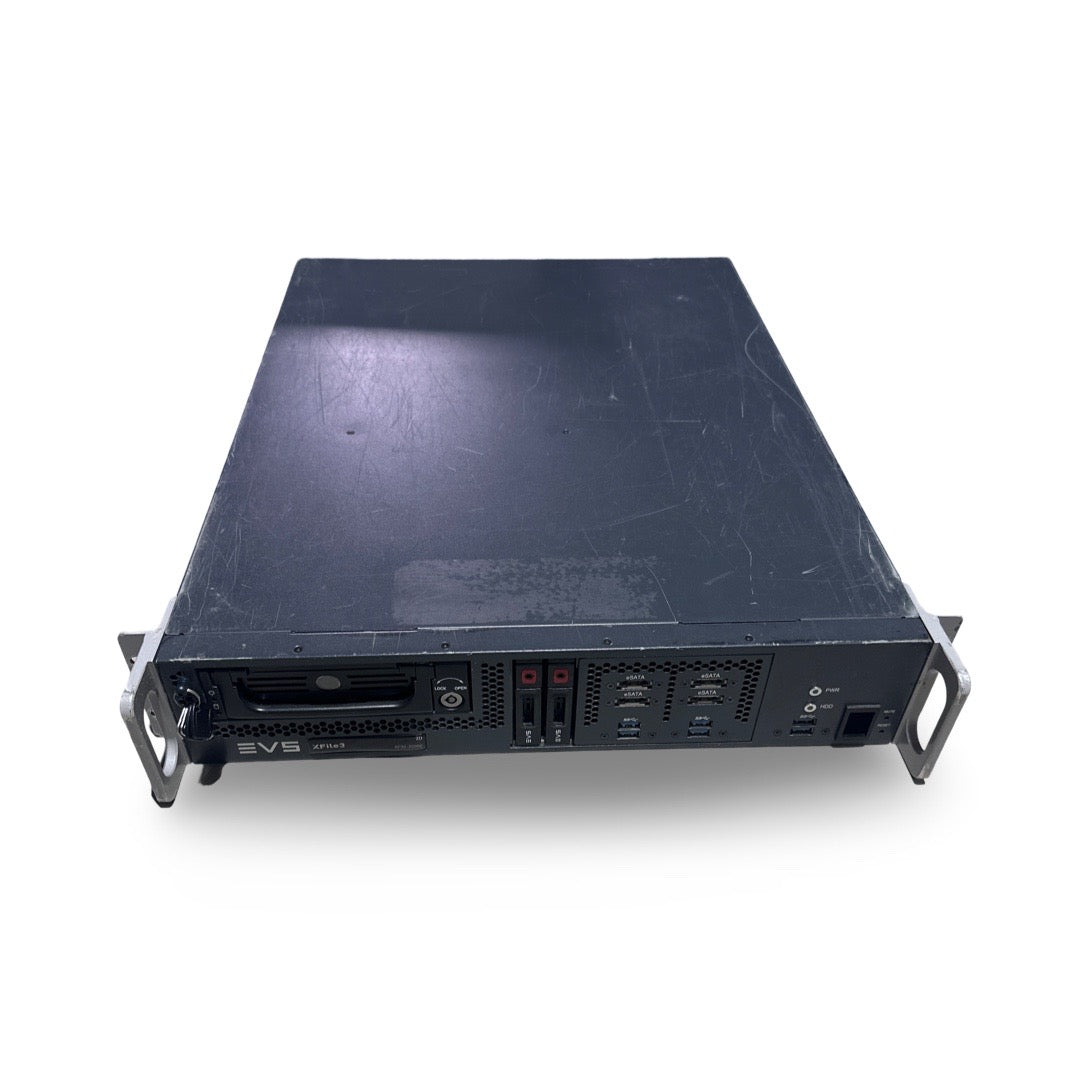

Xfile 3 EVS XF32-4301D Broadcast File Server

X-File3 XF32-4301D Broadcast File Server – 8TB RAID / XFile3 / XSquare

Professional XF3 model XF32-4301D broadcast file server, configured with internal RAID storage and dedicated removable drives. The system is equipped with the Transcoding Licence and includes the XFile3 and XSquare Suite software applications.

Designed for professional broadcast environments, the XF32-4301D provides high-capacity storage, fast network connectivity and reliable redundant operation for recording, file management and media workflows.

Configuration

• Model: XF32-4301D
• XF32-4D-RAID+ configuration
• 8TB RAID storage
• Internal RAID5: 8 × 1.2TB SAS drives
• 2 × removable 1TB drives
• Transcoding Licence installed
• XFile3 software included
• XSquare Suite software included

Recording Capacity

• Up to 336 hours at SD 50 Mbps
• Up to 168 hours at HD 100 Mbps

Hardware

• 2U 19” rackmount chassis
• Redundant power supply
• Dual Hexa-Core 2.1 GHz CPUs with Hyper-Threading
• 64GB DDR4 ECC 2400 RAM
• 200GB 2.5” SATA SSD for operating system
• Windows 10 Enterprise LTSB 64-bit

Connectivity

• 2 × Gigabit Ethernet ports with Jumbo Frame support
• 2 × 10 Gigabit Ethernet ports with SFP+ connectors
• 1 × USB 3.0 front
• 5 × USB 3.0 rear
• SFP+ modules not included

Applications

The system includes XFile3 and XSquare Suite, providing professional tools for broadcast media file management, transfer, backup and workflow integration.

A powerful and flexible solution for professional broadcast, production and media environments requiring reliable high-capacity storage and fast file-based workflows.
