HDC-2400

Sony 3G multiformat HD system camera trains

The following components are included in each camera train:

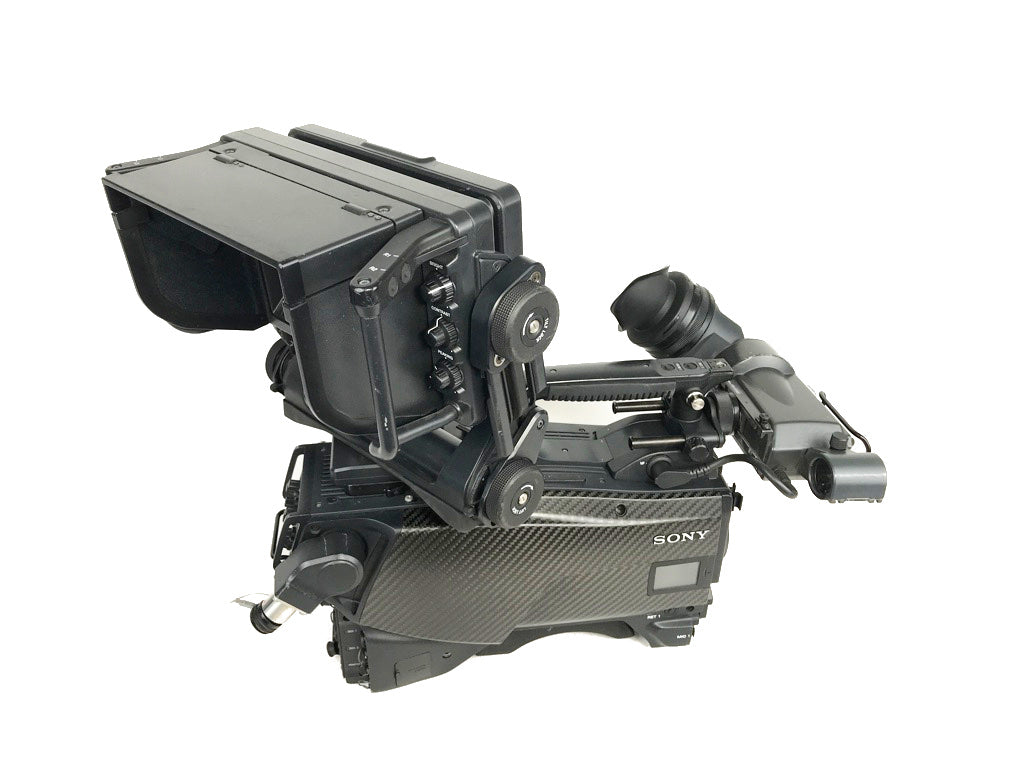

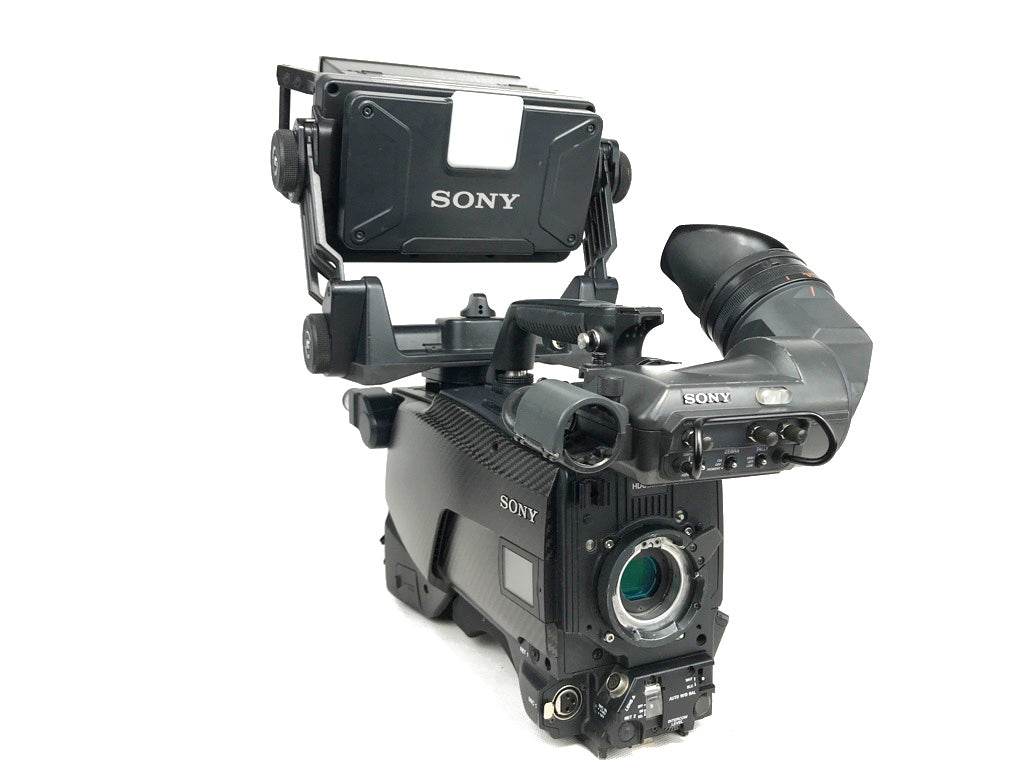

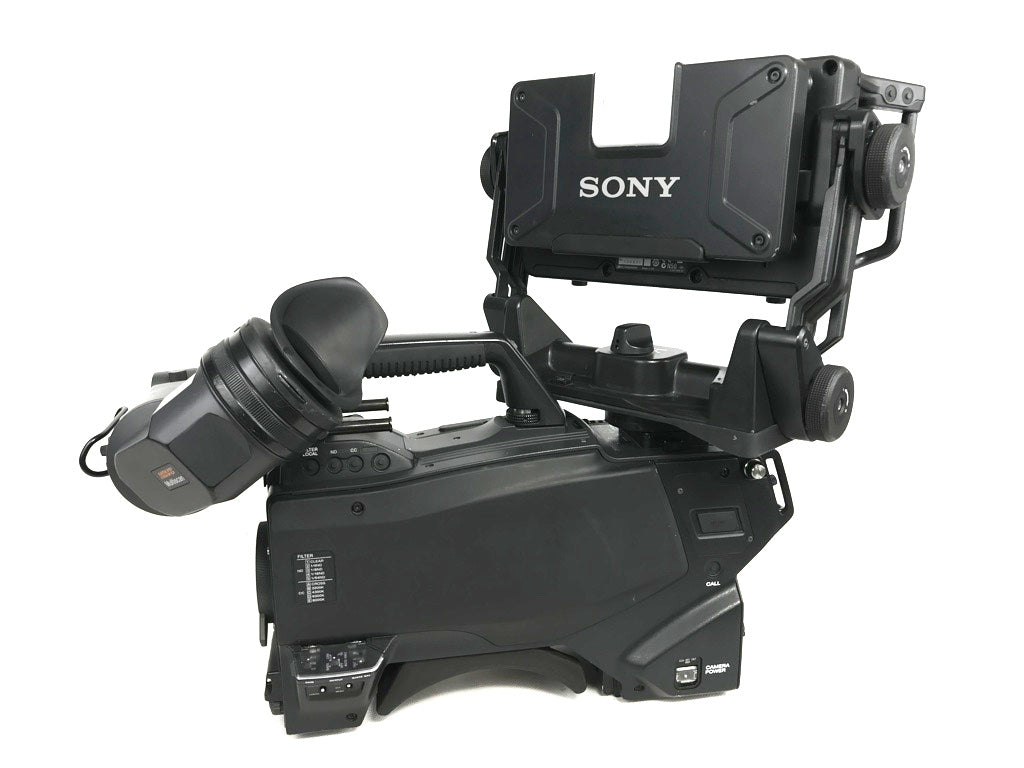

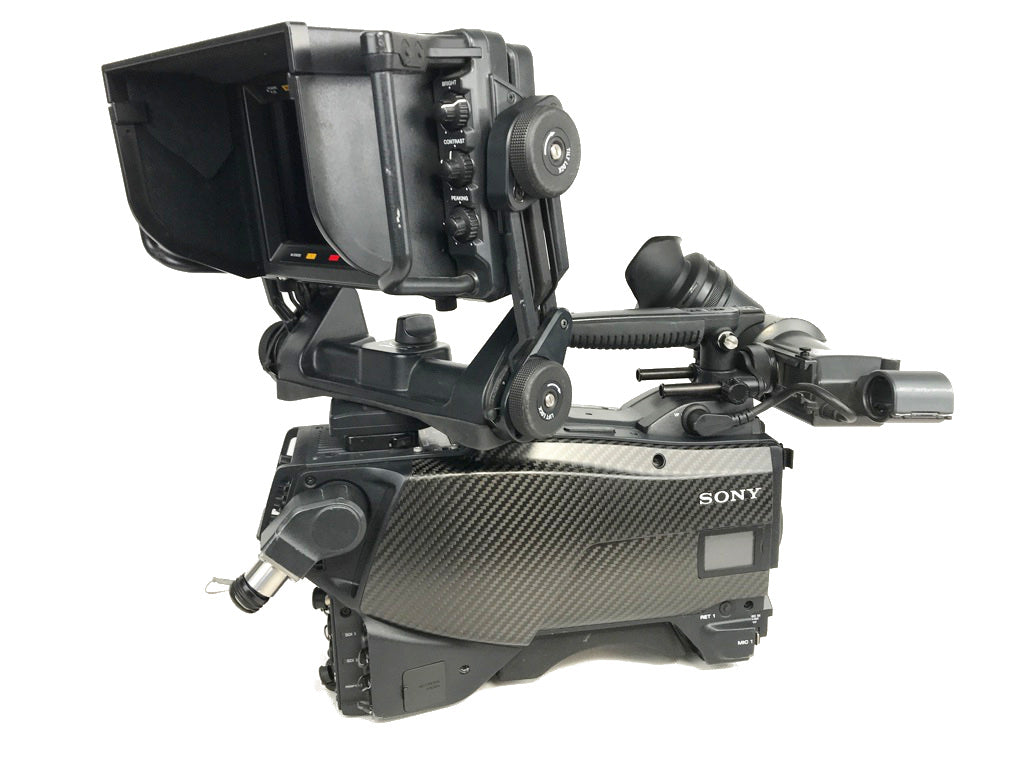

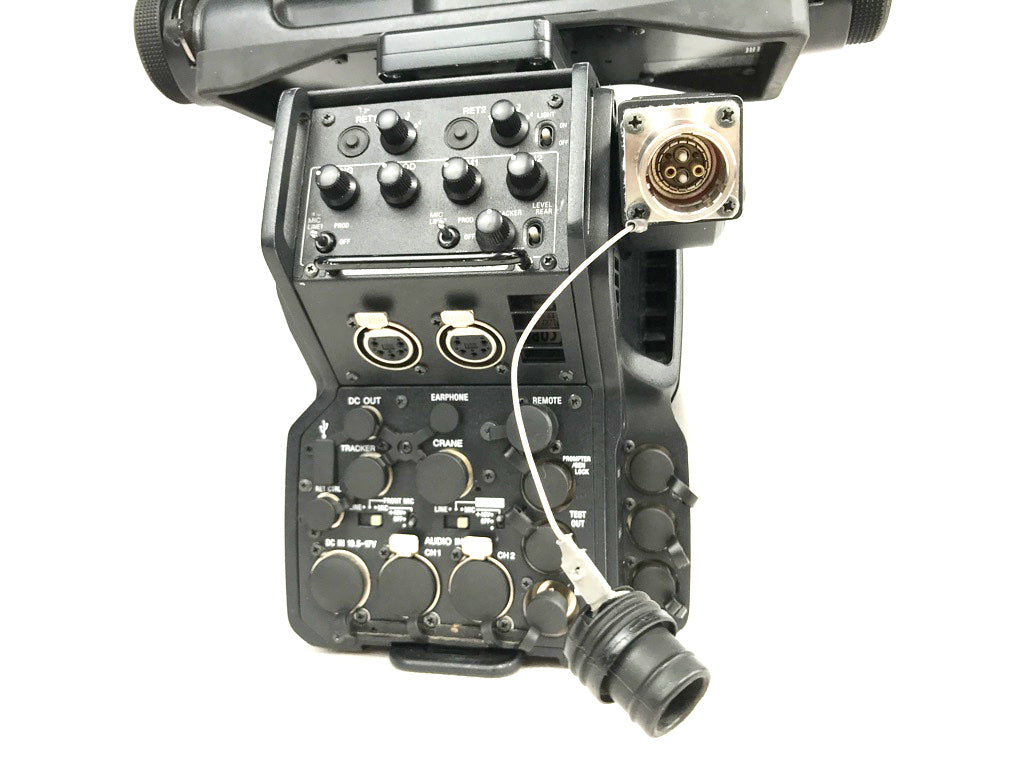

• HDC-2400 camera body
• HDCU-2500 CCU
• HDVF-EL75 7" studio color viewfinder
• RCP-1500

The cameras also have the following license: 59.94p

Manufacturer information:
Image sensor: 2/3" CCD, 3 chips

Effective image elements (H x V):

1,920x1,080

Signal format:

1080/50i,59.94i, 720/50p, 59.94p

Spectral system:

F1.4 prism

Lens mount:

Sony bayonet connection

Integrated CC filters:

Electrical (Optical CC filters are also available with the optional HKC-DF20)

Integrated ND filters:
1: CLEAR, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND, 5: CROSS

Sensitivity:

(at 2,000 lux, 3,200 K, 89.9% reflectivity) F11 (1080/50i), F10 (1080/59.94i)

Signal-to-noise ratio:

(1080i, standard) -60 dB/-64 dB (at max. NS)

Horizontal resolution:

(1,080i) 1000 television lines (center of image)


Shutter speeds:
1/60, 1/125, 1/250, 1/500, 1/1,000, 1/2,000 sec (50i)
1/100, 1/125, 1/250, 1/500, 1/1,000, 1/2,000 sec. (59.94i)
1/60, 1/125, 1/250, 1/500, 1/1,000, 1/2,000 sec (50p)
1/100, 1/125, 1/250, 1/500, 1/1,000, 1/2000 sec (59.94p)
